快速開始（串流 / Java）¶
本快速開始指南將引導你建立一個基礎的 agent，並利用 Java 版 Agent Development Kit (ADK) Streaming，實現低延遲、雙向語音互動。
你將從設定 Java 與 Maven 開發環境開始，建立專案結構並定義所需的相依套件。接著，你會建立一個簡單的 ScienceTeacherAgent，透過 Dev UI 測試其文字串流功能，然後進一步啟用即時語音通訊，讓你的 agent 轉變為互動式語音應用程式。
建立你的第一個 agent¶
先決條件¶
-
在本入門指南中，你將使用 Java 進行開發。請確認你的機器上已安裝 Java。建議使用 Java 17 或以上版本（你可以輸入 java -version 來檢查）。
-
你也會用到 Java 的建置工具 Maven。請在繼續之前，確保你的機器上已安裝 Maven（Cloud Top 或 Cloud Shell 預設已安裝，但你的筆電可能沒有）。
準備專案結構¶
要開始使用 ADK Java，請建立一個 Maven 專案，並採用以下目錄結構：
請依照 Installation 頁面的指示，新增 pom.xml 以使用 Agent Development Kit (ADK) 套件。
Note
你可以自由選擇專案根目錄的名稱（不一定要使用 adk-agents）
執行編譯¶
讓我們來看看 Maven 是否能順利編譯這個專案，請執行編譯指令（mvn compile 指令）：
$ mvn compile
[INFO] Scanning for projects...
[INFO]
[INFO] --------------------< adk-agents:adk-agents >--------------------
[INFO] Building adk-agents 1.0-SNAPSHOT
[INFO] from pom.xml
[INFO] --------------------------------[ jar ]---------------------------------
[INFO]
[INFO] --- resources:3.3.1:resources (default-resources) @ adk-demo ---
[INFO] skip non existing resourceDirectory /home/user/adk-demo/src/main/resources
[INFO]
[INFO] --- compiler:3.13.0:compile (default-compile) @ adk-demo ---
[INFO] Nothing to compile - all classes are up to date.
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 1.347 s
[INFO] Finished at: 2025-05-06T15:38:08Z
[INFO] ------------------------------------------------------------------------
看起來專案已經正確設定完成，可以進行編譯了！
建立 agent¶
請在 src/main/java/agents/ 資料夾下建立 ScienceTeacherAgent.java 檔案，內容如下：
package samples.liveaudio;
import com.google.adk.agents.BaseAgent;
import com.google.adk.agents.LlmAgent;
/** Science teacher agent. */
public class ScienceTeacherAgent {
// Field expected by the Dev UI to load the agent dynamically
// (the agent must be initialized at declaration time)
public static final BaseAgent ROOT_AGENT = initAgent();
public static BaseAgent initAgent() {
return LlmAgent.builder()
.name("science-app")
.description("Science teacher agent")
.model("gemini-2.0-flash-exp")
.instruction("""
You are a helpful science teacher that explains
science concepts to kids and teenagers.
""")
.build();
}
}
疑難排解
The model gemini-2.0-flash-exp will be deprecated in the future. If you see any issues on using it, try using gemini-2.0-flash-live-001 instead
我們稍後會使用 Dev UI 來執行這個 agent。為了讓工具能自動識別這個 agent，其 Java 類別必須遵循以下兩個規則：
- agent 必須儲存在一個全域的 public static 變數，名稱為 ROOT_AGENT，型別為 BaseAgent，並於宣告時初始化。
- agent 的定義必須是一個 static 方法，這樣動態編譯的 classloader 才能在類別初始化時載入。
使用 Dev UI 執行 agent¶
Dev UI 是一個網頁伺服器，讓你可以快速執行並測試 agent，以利開發用途，無需為 agent 建立自己的 UI 應用程式。
定義環境變數¶
要執行這個伺服器，你需要匯出兩個環境變數：
- 一組 Gemini 金鑰，你可以從 AI Studio 取得，
- 一個變數，用來指定這次不使用 Vertex AI。
啟動 Dev UI¶
請在終端機中執行以下指令以啟動 Dev UI。
terminal
mvn exec:java \
-Dexec.mainClass="com.google.adk.web.AdkWebServer" \
-Dexec.args="--adk.agents.source-dir=src/main/java" \
-Dexec.classpathScope="compile"
步驟 1： 直接在瀏覽器中開啟提供的 URL（通常為 http://localhost:8080 或 http://127.0.0.1:8080）。
步驟 2： 在網頁 UI 左上角，可以在下拉選單中選擇你的 agent。請選擇「science-app」。
疑難排解
If you do not see "science-app" in the dropdown menu, make sure you
are running the mvn command at the location where your Java source code
is located (usually src/main/java).
使用文字體驗 Dev UI¶
請使用你喜愛的瀏覽器，前往：http://127.0.0.1:8080/

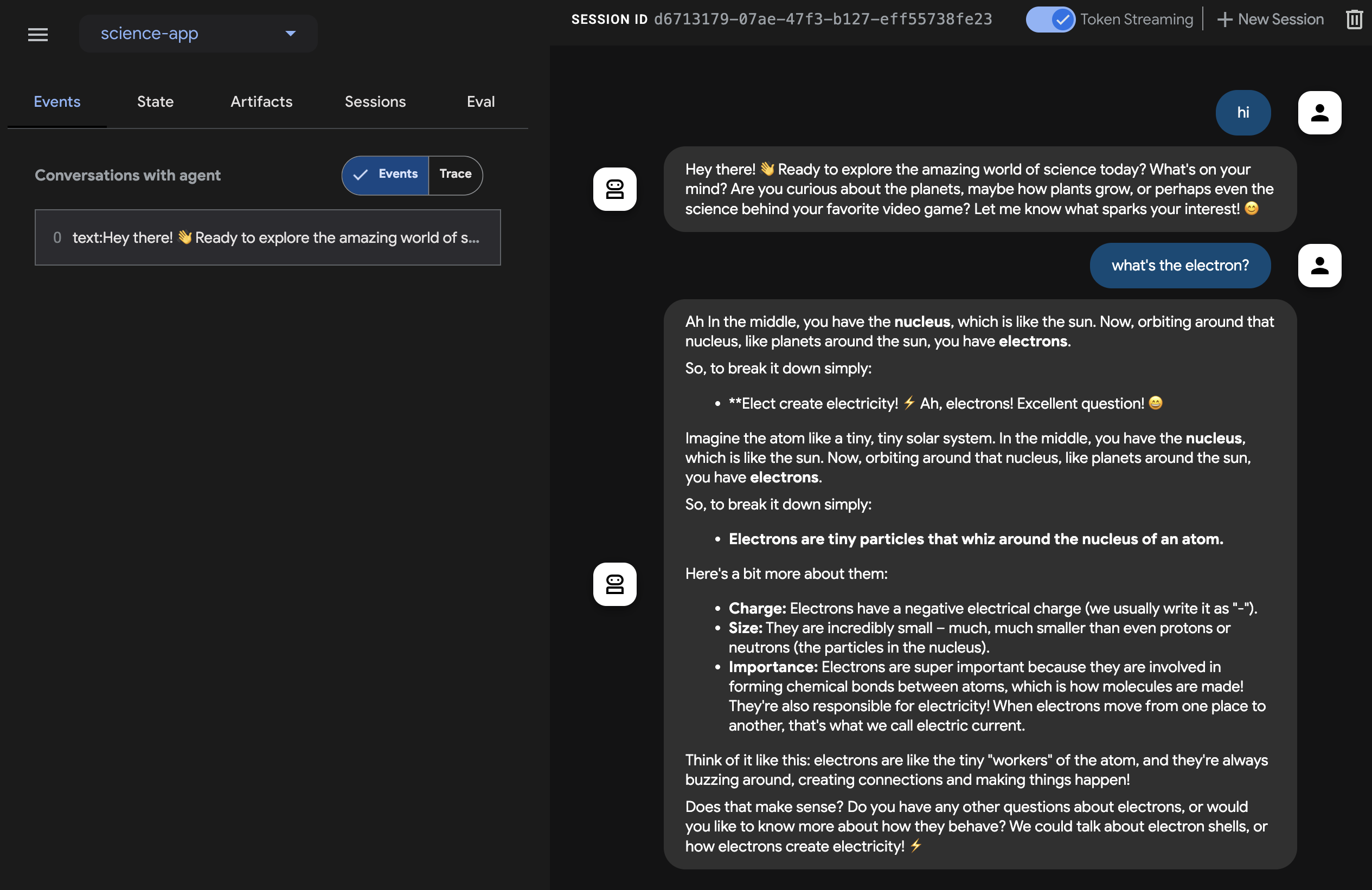

你應該會看到以下介面：
點擊右上角的 Token Streaming 開關，並向科學老師提問任何問題，例如 What's the electron?。接著你應該會在 UI 上看到文字以串流方式即時顯示。
如同我們所見，你不需要在 agent 本身撰寫任何特定程式碼來實現文字串流功能。這項功能預設由 Agent Development Kit (ADK) agent 提供。
體驗語音與視訊¶
若要體驗語音功能，請重新載入網頁瀏覽器，點擊麥克風按鈕以啟用語音輸入，並用語音詢問相同的問題。你會即時聽到語音回覆。
若要體驗視訊功能，請重新載入網頁瀏覽器，點擊相機按鈕以啟用視訊輸入，並詢問像是「你看到了什麼？」這類問題。agent 會回答他們在視訊輸入中所看到的內容。
停止工具¶
在主控台按下 Ctrl-C 以停止此工具。
使用自訂即時語音應用程式執行 agent¶
現在，讓我們嘗試將 agent 與自訂即時語音應用程式結合，體驗語音串流。
Live Audio 的 Maven pom.xml 建置檔¶
請將你現有的 pom.xml 替換為以下內容。
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.google.adk.samples</groupId>
<artifactId>google-adk-sample-live-audio</artifactId>
<version>0.1.0</version>
<name>Google ADK - Sample - Live Audio</name>
<description>
A sample application demonstrating a live audio conversation using ADK,
runnable via samples.liveaudio.LiveAudioRun.
</description>
<packaging>jar</packaging>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<java.version>17</java.version>
<auto-value.version>1.11.0</auto-value.version>
<!-- Main class for exec-maven-plugin -->
<exec.mainClass>samples.liveaudio.LiveAudioRun</exec.mainClass>
<google-adk.version>0.1.0</google-adk.version>
</properties>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>com.google.cloud</groupId>
<artifactId>libraries-bom</artifactId>
<version>26.53.0</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<dependencies>
<dependency>
<groupId>com.google.adk</groupId>
<artifactId>google-adk</artifactId>
<version>${google-adk.version}</version>
</dependency>
<dependency>
<groupId>commons-logging</groupId>
<artifactId>commons-logging</artifactId>
<version>1.2</version> <!-- Or use a property if defined in a parent POM -->
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.13.0</version>
<configuration>
<source>${java.version}</source>
<target>${java.version}</target>
<parameters>true</parameters>
<annotationProcessorPaths>
<path>
<groupId>com.google.auto.value</groupId>
<artifactId>auto-value</artifactId>
<version>${auto-value.version}</version>
</path>
</annotationProcessorPaths>
</configuration>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>build-helper-maven-plugin</artifactId>
<version>3.6.0</version>
<executions>
<execution>
<id>add-source</id>
<phase>generate-sources</phase>
<goals>
<goal>add-source</goal>
</goals>
<configuration>
<sources>
<source>.</source>
</sources>
</configuration>
</execution>
</executions>
</plugin>
<plugin>
<groupId>org.codehaus.mojo</groupId>
<artifactId>exec-maven-plugin</artifactId>
<version>3.2.0</version>
<configuration>
<mainClass>${exec.mainClass}</mainClass>
<classpathScope>runtime</classpathScope>
</configuration>
</plugin>
</plugins>
</build>
</project>
建立 Live Audio Run 工具¶
在 src/main/java/ 資料夾下建立 LiveAudioRun.java 檔案，內容如下。這個工具會在其上執行 agent，並支援即時語音輸入與輸出。
package samples.liveaudio;
import com.google.adk.agents.LiveRequestQueue;
import com.google.adk.agents.RunConfig;
import com.google.adk.events.Event;
import com.google.adk.runner.Runner;
import com.google.adk.sessions.InMemorySessionService;
import com.google.common.collect.ImmutableList;
import com.google.genai.types.Blob;
import com.google.genai.types.Modality;
import com.google.genai.types.PrebuiltVoiceConfig;
import com.google.genai.types.Content;
import com.google.genai.types.Part;
import com.google.genai.types.SpeechConfig;
import com.google.genai.types.VoiceConfig;
import io.reactivex.rxjava3.core.Flowable;
import java.io.ByteArrayOutputStream;
import java.io.InputStream;
import java.net.URL;
import javax.sound.sampled.AudioFormat;
import javax.sound.sampled.AudioInputStream;
import javax.sound.sampled.AudioSystem;
import javax.sound.sampled.DataLine;
import javax.sound.sampled.LineUnavailableException;
import javax.sound.sampled.Mixer;
import javax.sound.sampled.SourceDataLine;
import javax.sound.sampled.TargetDataLine;
import java.util.UUID;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.ConcurrentHashMap;
import java.util.concurrent.ConcurrentMap;
import java.util.concurrent.Executors;
import java.util.concurrent.Future;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicBoolean;
import agents.ScienceTeacherAgent;
/** Main class to demonstrate running the {@link LiveAudioAgent} for a voice conversation. */
public final class LiveAudioRun {
private final String userId;
private final String sessionId;
private final Runner runner;
private static final javax.sound.sampled.AudioFormat MIC_AUDIO_FORMAT =
new javax.sound.sampled.AudioFormat(16000.0f, 16, 1, true, false);
private static final javax.sound.sampled.AudioFormat SPEAKER_AUDIO_FORMAT =
new javax.sound.sampled.AudioFormat(24000.0f, 16, 1, true, false);
private static final int BUFFER_SIZE = 4096;
public LiveAudioRun() {
this.userId = "test_user";
String appName = "LiveAudioApp";
this.sessionId = UUID.randomUUID().toString();
InMemorySessionService sessionService = new InMemorySessionService();
this.runner = new Runner(ScienceTeacherAgent.ROOT_AGENT, appName, null, sessionService);
ConcurrentMap<String, Object> initialState = new ConcurrentHashMap<>();
var unused =
sessionService.createSession(appName, userId, initialState, sessionId).blockingGet();
}
private void runConversation() throws Exception {
System.out.println("Initializing microphone input and speaker output...");
RunConfig runConfig =
RunConfig.builder()
.setStreamingMode(RunConfig.StreamingMode.BIDI)
.setResponseModalities(ImmutableList.of(new Modality("AUDIO")))
.setSpeechConfig(
SpeechConfig.builder()
.voiceConfig(
VoiceConfig.builder()
.prebuiltVoiceConfig(
PrebuiltVoiceConfig.builder().voiceName("Aoede").build())
.build())
.languageCode("en-US")
.build())
.build();
LiveRequestQueue liveRequestQueue = new LiveRequestQueue();
Flowable<Event> eventStream =
this.runner.runLive(
runner.sessionService().createSession(userId, sessionId).blockingGet(),
liveRequestQueue,
runConfig);
AtomicBoolean isRunning = new AtomicBoolean(true);
AtomicBoolean conversationEnded = new AtomicBoolean(false);
ExecutorService executorService = Executors.newFixedThreadPool(2);
// Task for capturing microphone input
Future<?> microphoneTask =
executorService.submit(() -> captureAndSendMicrophoneAudio(liveRequestQueue, isRunning));
// Task for processing agent responses and playing audio
Future<?> outputTask =
executorService.submit(
() -> {
try {
processAudioOutput(eventStream, isRunning, conversationEnded);
} catch (Exception e) {
System.err.println("Error processing audio output: " + e.getMessage());
e.printStackTrace();
isRunning.set(false);
}
});
// Wait for user to press Enter to stop the conversation
System.out.println("Conversation started. Press Enter to stop...");
System.in.read();
System.out.println("Ending conversation...");
isRunning.set(false);
try {
// Give some time for ongoing processing to complete
microphoneTask.get(2, TimeUnit.SECONDS);
outputTask.get(2, TimeUnit.SECONDS);
} catch (Exception e) {
System.out.println("Stopping tasks...");
}
liveRequestQueue.close();
executorService.shutdownNow();
System.out.println("Conversation ended.");
}
private void captureAndSendMicrophoneAudio(
LiveRequestQueue liveRequestQueue, AtomicBoolean isRunning) {
TargetDataLine micLine = null;
try {
DataLine.Info info = new DataLine.Info(TargetDataLine.class, MIC_AUDIO_FORMAT);
if (!AudioSystem.isLineSupported(info)) {
System.err.println("Microphone line not supported!");
return;
}
micLine = (TargetDataLine) AudioSystem.getLine(info);
micLine.open(MIC_AUDIO_FORMAT);
micLine.start();
System.out.println("Microphone initialized. Start speaking...");
byte[] buffer = new byte[BUFFER_SIZE];
int bytesRead;
while (isRunning.get()) {
bytesRead = micLine.read(buffer, 0, buffer.length);
if (bytesRead > 0) {
byte[] audioChunk = new byte[bytesRead];
System.arraycopy(buffer, 0, audioChunk, 0, bytesRead);
Blob audioBlob = Blob.builder().data(audioChunk).mimeType("audio/pcm").build();
liveRequestQueue.realtime(audioBlob);
}
}
} catch (LineUnavailableException e) {
System.err.println("Error accessing microphone: " + e.getMessage());
e.printStackTrace();
} finally {
if (micLine != null) {
micLine.stop();
micLine.close();
}
}
}
private void processAudioOutput(
Flowable<Event> eventStream, AtomicBoolean isRunning, AtomicBoolean conversationEnded) {
SourceDataLine speakerLine = null;
try {
DataLine.Info info = new DataLine.Info(SourceDataLine.class, SPEAKER_AUDIO_FORMAT);
if (!AudioSystem.isLineSupported(info)) {
System.err.println("Speaker line not supported!");
return;
}
final SourceDataLine finalSpeakerLine = (SourceDataLine) AudioSystem.getLine(info);
finalSpeakerLine.open(SPEAKER_AUDIO_FORMAT);
finalSpeakerLine.start();
System.out.println("Speaker initialized.");
for (Event event : eventStream.blockingIterable()) {
if (!isRunning.get()) {
break;
}
AtomicBoolean audioReceived = new AtomicBoolean(false);
processEvent(event, audioReceived);
event.content().ifPresent(content -> content.parts().ifPresent(parts -> parts.forEach(part -> playAudioData(part, finalSpeakerLine))));
}
speakerLine = finalSpeakerLine; // Assign to outer variable for cleanup in finally block
} catch (LineUnavailableException e) {
System.err.println("Error accessing speaker: " + e.getMessage());
e.printStackTrace();
} finally {
if (speakerLine != null) {
speakerLine.drain();
speakerLine.stop();
speakerLine.close();
}
conversationEnded.set(true);
}
}
private void playAudioData(Part part, SourceDataLine speakerLine) {
part.inlineData()
.ifPresent(
inlineBlob ->
inlineBlob
.data()
.ifPresent(
audioBytes -> {
if (audioBytes.length > 0) {
System.out.printf(
"Playing audio (%s): %d bytes%n",
inlineBlob.mimeType(),
audioBytes.length);
speakerLine.write(audioBytes, 0, audioBytes.length);
}
}));
}
private void processEvent(Event event, java.util.concurrent.atomic.AtomicBoolean audioReceived) {
event
.content()
.ifPresent(
content ->
content
.parts()
.ifPresent(parts -> parts.forEach(part -> logReceivedAudioData(part, audioReceived))));
}
private void logReceivedAudioData(Part part, AtomicBoolean audioReceived) {
part.inlineData()
.ifPresent(
inlineBlob ->
inlineBlob
.data()
.ifPresent(
audioBytes -> {
if (audioBytes.length > 0) {
System.out.printf(
" Audio (%s): received %d bytes.%n",
inlineBlob.mimeType(),
audioBytes.length);
audioReceived.set(true);
} else {
System.out.printf(
" Audio (%s): received empty audio data.%n",
inlineBlob.mimeType());
}
}));
}
public static void main(String[] args) throws Exception {
LiveAudioRun liveAudioRun = new LiveAudioRun();
liveAudioRun.runConversation();
System.out.println("Exiting Live Audio Run.");
}
}
執行 Live Audio Run 工具¶
要執行 Live Audio Run 工具，請在 adk-agents 目錄下使用以下指令：
然後你應該會看到：
$ mvn compile exec:java
...
Initializing microphone input and speaker output...
Conversation started. Press Enter to stop...
Speaker initialized.
Microphone initialized. Start speaking...
當出現此訊息時，該工具已準備好接收語音輸入。你可以像這樣向 agent 提問：What's the electron?。
Caution
當你發現 agent 持續自動說話且無法停止時，請嘗試使用耳機來抑制回音。
摘要¶
Agent Development Kit (ADK) 的串流功能讓開發者能夠打造具備低延遲、雙向語音與視訊通訊能力的 agent，進一步提升互動體驗。本文說明文字串流已作為 ADK agent 的內建功能，無需額外撰寫特定程式碼，同時也展示如何實作即時語音對話，讓使用者能夠與 agent 進行即時語音互動。這使得溝通更加自然且具動態性，使用者可以無縫地與 agent 進行語音交流。
